Buyer’s guide · Organizational trays

How to Choose Plastic Storage Trays

How do you choose the right tray from Shirley K’s over 100 size options? Typically, it will start with the width requirements because that is usually the dimension that is critical to fit in the space that the tray is intended to go in.

Nested tan Shirley K's plastic storage trays in three sizes, one with a three-compartment insert and a label card holder
Three sizes, one with a compartment insert
  • 100+tray sizes
  • 3.25–19.875″widths, narrowest to widest
  • 12colors, plus custom color match
  • USAmade in the USA, in impact-resistant HIPS plastic

The method

Start with the width

Once you know the min and max width that you can use, we can narrow down the list of possible fits. From there, just choose the length and depth that best meets your needs.

  1. Measure the spaceFind the narrowest and the widest tray the opening can take. Width is usually the dimension that decides the fit.
  2. Narrow the listEnter that range in the tray finder below. Only the trays that fit stay on the list.
  3. Choose length and depthFrom the trays that fit, pick the length and height that suit what goes in them.
A storage tray with width on the short side, length on the long side and height measured top to bottomWwidthLlengthHInside bottom = the flat floor inside the tray
How the size chart measures a tray. Width is the short side.

Tray finder

Find the trays that fit your space

All 108 standard sizes from the Shirley K’s catalog. Tap a width range, or type the narrowest and widest width your space allows.

Tray sizes by width, in inches. Tap a bar to show that range.

in

in

in

in

108 tray sizes, narrowest first

Download all sizes (Excel)

Dimensions as published in the Shirley K’s product catalog. Contact Shirley K’s to confirm current availability.
T189 3.25″ 14.125″ 2.75″ 2″ × 12.875″
T120 3.5″ 12.25″ 1.375″ 2.5″ × 11.25″
T190 5.25″ 14″ 2.75″ 4″ × 12.75″
T196 6.125″ 11.75″ 4″ 4.375″ × 10″
T122 7″ 10.875″ 2.625″ 5.75″ × 9.625″
T205 7″ 11″ 3″ 5.5″ × 9.5″
T206 7.375″ 11.375″ 4.25″ 5.625″ × 9.625″
T144-35 7.5″ 19″ 3.5″ 5.75″ × 17.25″
T144-4 7.5″ 19″ 4″ 5.75″ × 17.25″
T193 8″ 11.875″ 3″ 6.5″ × 10.375″
T207 8″ 11.875″ 4.75″ 6.25″ × 10.125″
T112 8″ 13.375″ 5″ 6.25″ × 11.625″
T167 8″ 18.875″ 4.375″ 6.25″ × 17.125″
T107 8.5″ 20″ 4.5″ 6.75″ × 18.25″
T155 9″ 16″ 3.625″ 7.25″ × 14.25″
T155-2 9″ 16″ 2″ 8″ × 15″
T100 9″ 19″ 4.375″ 7.25″ × 17.25″
T100-35 9″ 19″ 3.5″ 7.25″ × 17.25″
T209 9.25″ 10.5″ 4.125″ 7.5″ × 8.75″
T151 9.25″ 16″ 3.5″ 7.5″ × 14.2″
T194 9.25″ 17.25″ 2″ 8.25″ × 16.25″
T157-4 9.375″ 19″ 4.125″ 7.625″ × 17.25″
T154 10″ 16″ 5″ 8.25″ × 14.25″
T154-4 10″ 16″ 4″ 8.25″ × 14.25″
T148-35 10″ 19″ 3.375″ 8.5″ × 17.5″
T148-4 10″ 19″ 4″ 8.25″ × 17.25″
T201 10.125″ 10.125″ 5.125″ 8.375″ × 8.375″
T117 10.125″ 16.75″ 3.5″ 8.375″ × 15″
T118 10.25″ 13″ 3.5″ 8.5″ × 11.25″
T204 10.25″ 14.25″ 3.5″ 8.5″ × 12.5″
T203 10.25″ 18.75″ 3.5″ 8.5″ × 17″
T208 10.5″ 12″ 4.375″ 8.75″ × 10.25″
T135 10.5″ 13″ 2″ 9.5″ × 12″
T133 10.5″ 13.125″ 4.375″ 8.75″ × 11.375″
T133-4 10.5″ 13.125″ 4″ 8.75″ × 11.375″
T161 10.5″ 15″ 3.75″ 8.75″ × 13.25″
T146 10.5″ 18″ 2.5″ 9.25″ × 16.75″
T110 10.5″ 19″ 3.5″ 8.75″ × 17.25″
T132 10.5″ 19″ 4.375″ 8.75″ × 17.25″
T173 10.75″ 10.75″ 3.25″ 9.25″ × 9.25″
T123 10.75″ 13.75″ 3″ 9.25″ × 12.25″
T150 10.75″ 19″ 4.375″ 9″ × 17.25″
T210 11″ 14″ 4.375″ 9.25″ × 12.25″
T159 11″ 14.5″ 4″ 9.25″ × 12.75″
T165 11″ 16″ 4″ 9.25″ × 14.25″
T162 11″ 16.5″ 2.5″ 9.75″ × 15.25″
T178 11.125″ 14.5″ 4″ 9.375″ × 12.75″
T178-3 11.125″ 14.5″ 3″ 9.625″ × 13″
T114 11.5″ 18″ 3.25″ 10″ × 16.5″
T177 11.5″ 18″ 3.62″ 9.75″ × 16.25″
T103 11.5″ 18.125″ 4.25″ 9.75″ × 16.375″
T109 11.5″ 20″ 4.12″ 9.75″ × 18.25″
T134 11.625″ 14.5″ 6″ 9.75″ × 12.625″
T121 11.625″ 14.625″ 4″ 9.875″ × 12.875″
T106 11.75″ 16.25″ 4.375″ 10″ × 14.5″
T145 11.875″ 13.875″ 3.5″ 10.125″ × 12.125″
T166 11.875″ 17.75″ 4″ 10.125″ × 16″
T187 12″ 13.875″ 3.5″ 10.25″ × 12.125″
T183 12″ 14″ 4″ 10.25″ × 12.25″
T136 12″ 16″ 3.37″ 10.5″ × 14.5″
T181-3 12″ 16″ 3″ 10.5″ × 14.5″
T181-4 12″ 16″ 4″ 10.25″ × 14.25″
T174 12″ 20″ 3.2″ 10.5″ × 18.5″
T164 12.375″ 16″ 4.125″ 10.625″ × 14.25″
T137 12.5″ 13.25″ 4″ 10.75″ × 11.5″
T142 12.5″ 19″ 4.375″ 10.75″ × 17.25″
T142-25 12.5″ 19″ 2.5″ 11.25″ × 17.75″
T142-35 12.5″ 19″ 3.5″ 10.75″ × 17.25″
T116 13″ 16″ 3.5″ 11.25″ × 14.25″
T115 13″ 20″ 4.75″ 11.25″ × 18.25″
T101 13.125″ 16.625″ 3.5″ 11.375″ × 14.875″
T101-2 13.125″ 16.625″ 2″ 12.125″ × 15.625″
T130 13.125″ 20″ 4.25″ 11.375″ × 18.25″
T111 13.25″ 14″ 3″ 11.75″ × 12.5″
T156 13.25″ 19″ 4.25″ 11.5″ × 17.25″
T156-35 13.25″ 19″ 3.5″ 11.5″ × 17.25″
T119 13.25″ 22.5″ 3″ 11.75″ × 21″
T139 13.375″ 14.125″ 3.125″ 11.875″ × 12.625″
T180 13.75″ 14″ 4″ 12″ × 12.25″
T102 13.75″ 19″ 4.375″ 12″ × 17.25″
T105 13.75″ 19″ 3.5″ 12″ × 17.25″
T105-3 13.75″ 19″ 3″ 12.25″ × 17.5″
T168 13.75″ 19″ 4″ 12″ × 17.25″
T200 14″ 17.75″ 2.875″ 12.75″ × 16.5″
T160-35 14″ 18″ 3.5″ 12.25″ × 16.25″
T160-4 14″ 18″ 4″ 12.25″ × 16.25″
T160-5 14″ 18″ 5″ 12.25″ × 16.25″
T141 14″ 18.875″ 2.125″ 13″ × 17.875″
T170-35 14.125″ 19.125″ 3.5″ 12.375″ × 17.375″
T170-4 14.125″ 19.125″ 4″ 12.375″ × 17.375″
T170-55 14.125″ 19.125″ 5.5″ 12.25″ × 17.25″
T202 14.25″ 18.875″ 3.625″ 12.5″ × 17.125″
T188 14.25″ 19″ 3.5″ 12.5″ × 17.25″
T182 14.375″ 15.5″ 4.375″ 12.625″ × 13.75″
T191 14.375″ 19″ 4.25″ 12.625″ × 17.25″
T171 14.5″ 19.25″ 6″ 12.625″ × 17.375″
T172 14.625″ 20.125″ 3″ 13.125″ × 18.625″
T104 14.875″ 21.25″ 4.125″ 13.125″ × 19.5″
T179 15″ 19.875″ 5″ 13.25″ × 18.125″
T179-3 15″ 19.875″ 3″ 13.5″ × 18.375″
T179-4 15″ 19.875″ 4″ 13.25″ × 18.125″
T179-45 15″ 19.875″ 4.5″ 13.25″ × 18.125″
T211 15.125″ 16.875″ 3.5″ 13.375″ × 15.125″
T108 16″ 16″ 4.875″ 14.25″ × 14.25″
T212 18.75″ 13″ 5″ 17″ × 11.25″
T213 19″ 14.75″ 3.5″ 17.25″ × 13″
T163 19″ 21″ 4.375″ 17.25″ × 19.25″
T176 19.875″ 23″ 3.5″ 18.125″ × 21.25″

No exact fit? The cost of thermoforming tooling is surprisingly affordable. If the exact size that you need doesn’t seem to be available, let’s talk about creating it!

Start a Custom Project

Then pick the details

Colors, labels, lids and slides

Every size comes from the same tray family, so the options below work across the line.

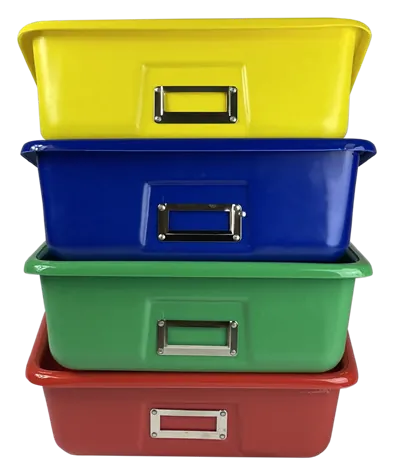

Stacked yellow, blue, green and red Shirley K's plastic storage trays with label holders

Over 100 sizes

Widths from 3.25″ to 19.875″, each with its own length and height. Every size is in the Excel chart.

See the sizing guide

Shirley K's storage tray color chart: tan, white, ivory, black, gray, clear, blue, green, orange, red and yellow

Standard and primary colors

Color-code by room, class or department. Custom color match is available.

Shirley K's tan storage tray with a label holder

Built-in label card holder

A card holder on the front keeps what’s inside easy to find.

Shirley K's plastic storage tray with lid, T135L

Snap-on lids

T135L fits T135 and T133/T133-4. PT186L fits PT186 and T157. Lids snap onto the lip.

Shirley K's panel tray slide system with plastic storage trays

Panel tray slide system

Ribbed panels install on the inside walls of a cabinet, so one unit holds multiple slide-out trays. Three panel sizes, color-matched or clear.

See slides and panels

Common uses:Science labsArt suppliesStudent suppliesOffice supplies

For caseworks manufacturers

A tray for every cabinet, worked out ahead of time

Caseworks manufacturers with standard cabinet widths and widths between dividers can establish a tray and panel solution compatible with each one. Simply send us all of your standard dimensions, and we will set up a matrix with the compatible tray/panels. We would be happy to send you samples of everything in the matrix so you can physically verify. With over 100 tote tray sizes and three universal panels, we can set up a tray solution for all of your cabinet spaces up front so when you have a need, it is all figured out ahead of time.

Shirley K's plastic storage trays in a classroom cabinet
Storage trays in a classroom cabinet
  1. Send your dimensionsStandard cabinet widths and the widths between dividers.
  2. Get the matrixThe trays and panels that fit each cabinet space.
  3. Check the samplesSamples of everything in the matrix, to verify by hand.
  4. Order as you goEach cabinet space already has its tray worked out.

Not sure which tray fits?

We help folks think through this all the time so just give us a call and we’ll figure it out together.

(740) 868-8140
