Panel Tray Slide System and Tray Rails
Panel tray slide system for fast cabinet installation — ideal for caseworks manufacturers. Ribbed support panels install on cabinet walls so one unit holds multiple slide-out trays.
- HIPS / clear
- 3 panel sizes
- Color-matched to trays
- Made in USA
Panel Sizes
| Panel # | Height | Depth | Rib Gap | Spacing |
|---|---|---|---|---|
| P1028 | 27″ | 21.25″ | 0.614″ | 1.0″ |
| P1029 | 29.75″ | 21.125″ | 1.096″ | 1.5″ |
| P1206 | 29.688″ | 18.75″ | 1.096″ | 1.5″ |
Panel sizes from the Shirley K’s product catalog. Color-matched to trays or available clear.
Rails & Lids

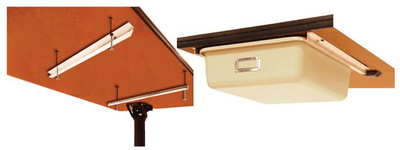

Aluminum rails (R15, 15″): mount under project tables, shelves, desks, and workbenches — perfect anywhere convenient slide-out tote access is needed (classrooms, offices, pantries).

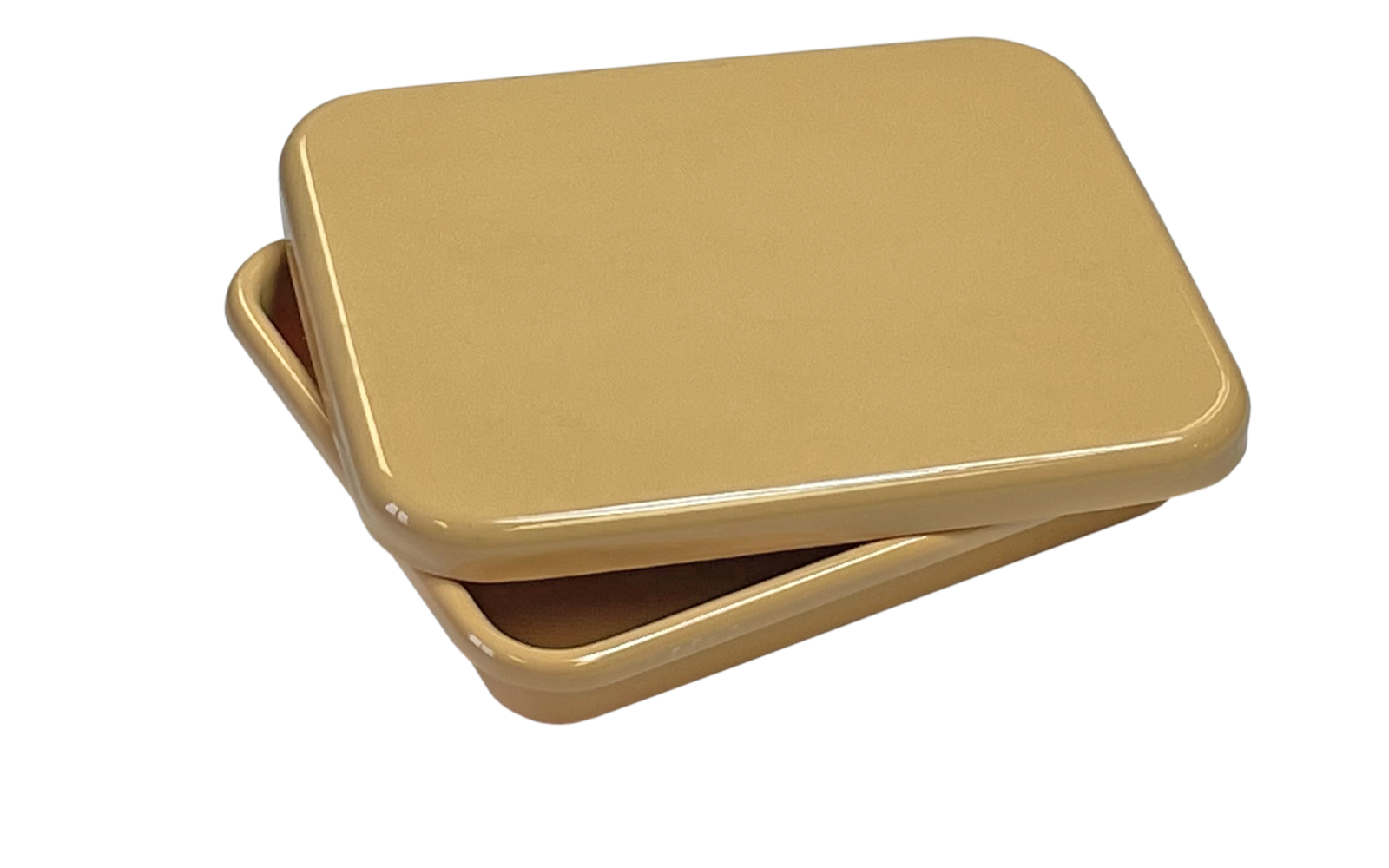

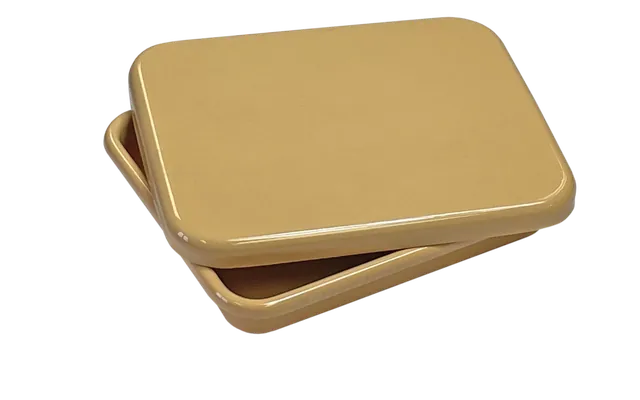

Lids: two lids each fit two tray sizes — T135L (10.2″ × 13.0″ × 0.5″) fits T135 and T133/T133-4, and PT186L (9.5″ × 9.25″ × 1.0″) fits PT186 and T157. Lids hang over the tray edges and snap onto the lip for a secure fit.
Key Features
- 100% Made in USA
- 3 panel sizes — color matched with trays, or clear
- Ribbed support panels install on the inside walls of storage cabinets
- Faster installation than individual rails for each tray
- Aluminum rails (R15) and snap-on lids available as accessories
- Highly impact-resistant in normal use — High Impact Polystyrene (HIPS) construction
Building cabinets with slide-out trays?
Panel rail systems for fast install. Send your cabinet dimensions and we’ll spec it.
